Additional information
| Product name | Rosette 5401 |
|---|---|
| Article | 5401 |
| Model | Låsbolaget N:o 1 |
| Period | |
| Material | Brass |
| Plating Kept in stock | Untreated and nickel-plated |

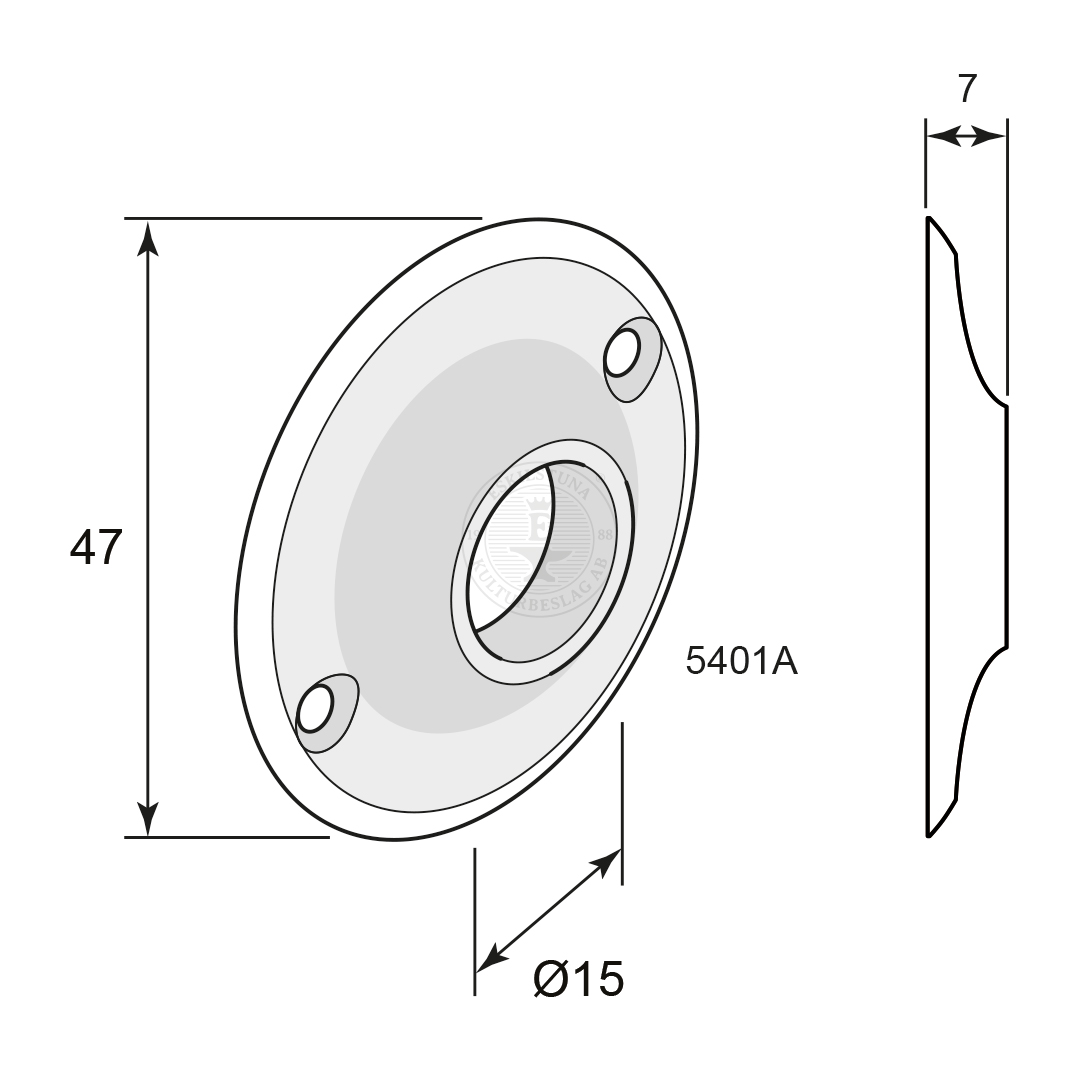

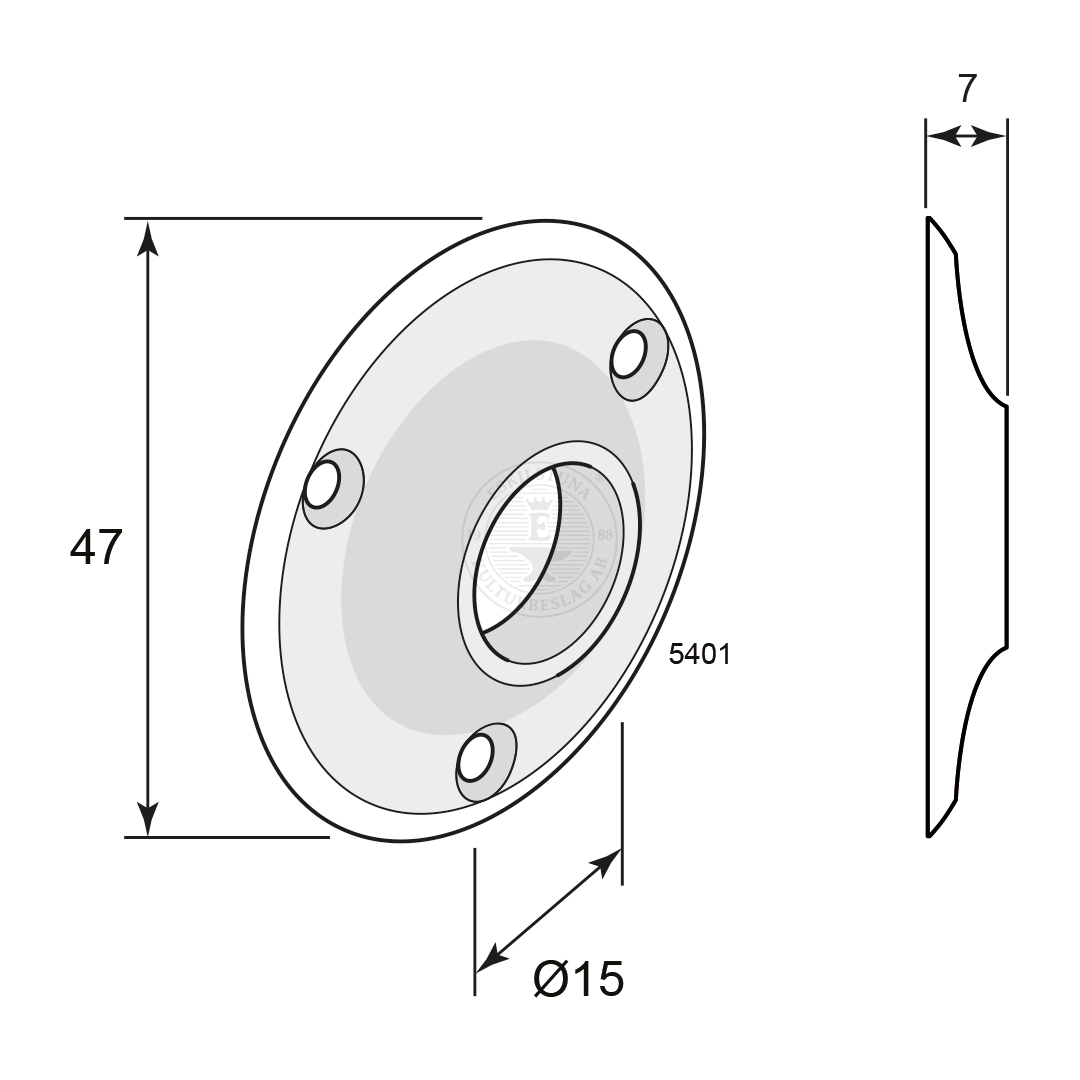

| Variants | 5401 for mounting with wood screw. 5401A for through-attachment. |
| Recommended wood screws | 5401: Raised countersunk head 5 x 5/8" M/MN. 5401A: Through-bolt 7020 with nipple. |
| Package | 5401: 1 pair with or without screws. 5401A: 1 pair incl. screws and nipples. |
| Other | The hole for the handle can be drilled up to max ø18 mm. 5401A is used for door handles, which are to be installed with through-bolts on modern doors that have drilled holes ø40 mm. The screw hole placement fits all modern Nordic lock housings. Bear in mind that 5401A is smaller than modern rosettes. It is possible that it may not completely cover the hole in modern doors. Rosette 5493A or 6405A is recommended in such cases. |
