Espagnolette 5617

1890-1935
Låsbolaget N:o 1310

Additional information

Product name

Espagnolette 5617

Article

5617

Model

Låsbolaget N:o 1310

Period

Material

Rods, bearings and frame spikes made of steel. Handles and hooks made of brass.

Plating with delivery time

Nickel-plated

Size

Bar ø9 mm

Variants

Right and Left (R shown)

Recommended wood screws

Round head 6 x ¾" N. Round head 6 x 1" MN for the hook.

Package

1 pc complete with accessories with or without screw

Other

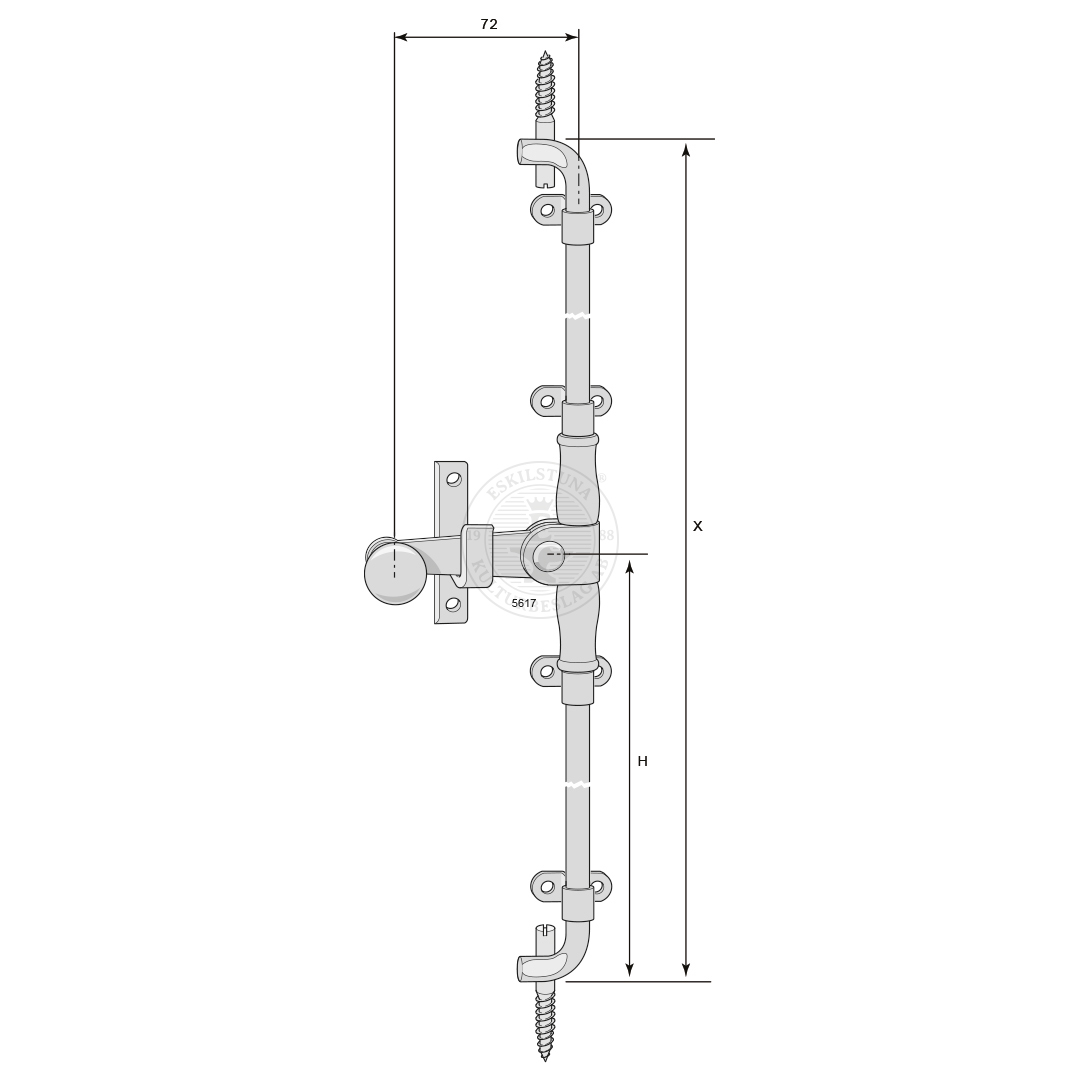

Only suitable for outwards swinging windows and French doors with meeting casements. Custom-made. When ordering, specify length X or frame clear opening. If the handle is not going to be positioned symmetrically, specify handle height H. Delivered as standard assembled complete with frame spike 5693 and 22 mm hook. If the hook is placed on the inner cover strip on a passive casement, a shallower hook is required. For alternative hooks, see part no. 5694, 5695. Right-hand and left-hand versions are calculated as viewed from the room. Also available as loose parts for own cutting and assembly (not recommended except for highly skilled individuals who have their own workshop resources).
