Edge hinge 5158

1930-1970
Aug Stenman N:o K 541 och K 554

Category: SKU: 5158

Additional information

Produktnamn

Edge hinge 5158

Artikelnummer

5158

Förebild

Aug Stenman N:o K 541 och K 554

Period

Material

Hot rolled, high tensile steel

Ytb. lagerhålles

Nickel-plated after polishing and zinc-plated

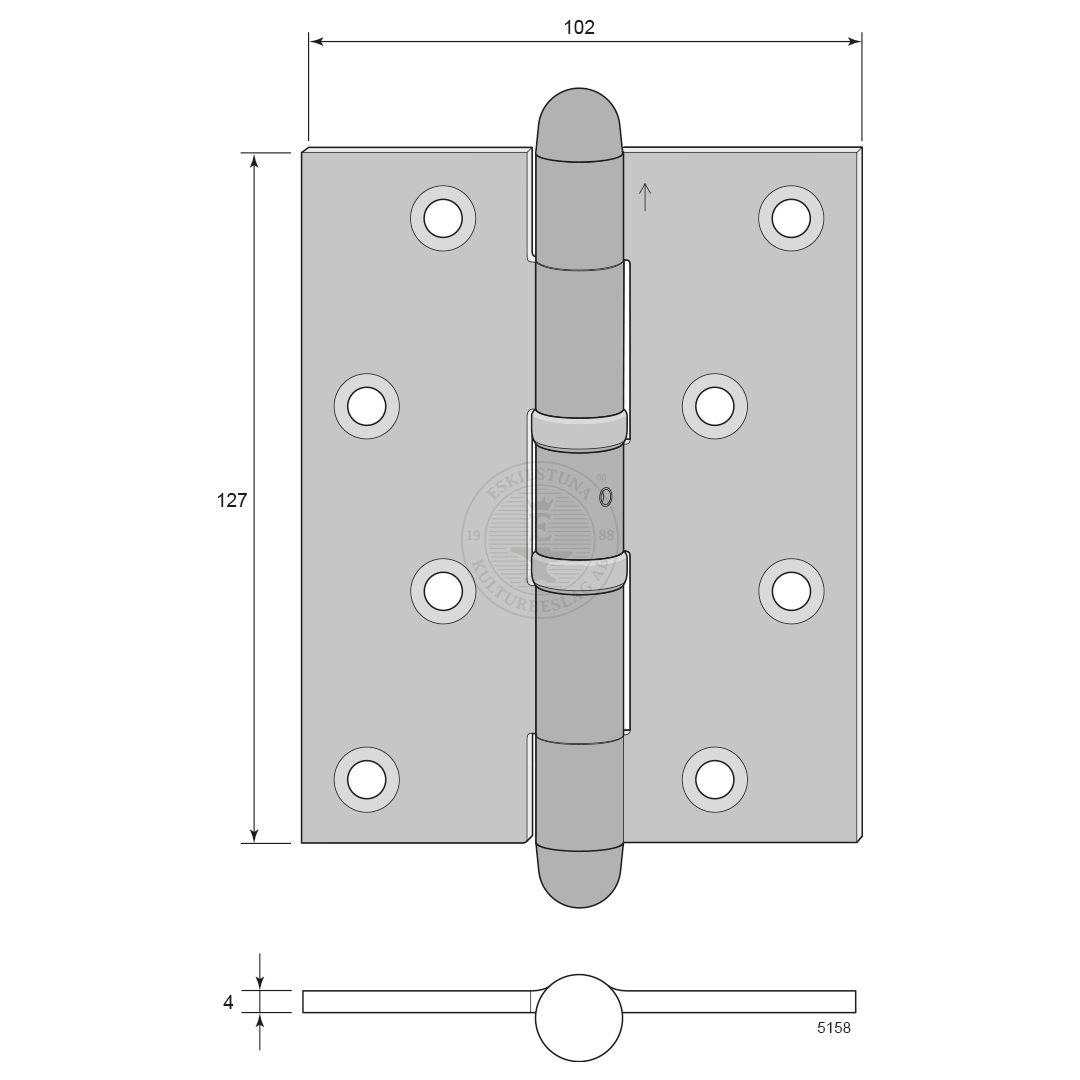

Storlek

5” x 4” (127 x 102)

Rek. skruv

Countersunk head 12 x 1¼"

Förpackning

1 or 10 pcs with or without screw

Övrigt

The same hinge is used for both right and left-hung doors. During installation, the arrow should be pointing up. Note that the ball bearings are loose. Don’t drop them!
Loose ball bearings, see 5040.
