Mortise lock 5220

1875 – 1970
Låsfabriks Aktiebolaget E A Næsman & Co N:o 432

Category: SKU: 5220

Additional information

Product name

Mortise lock 5220




Låsfabriks Aktiebolaget E A Næsman & Co N:o 432



Cold rolled, high tensile steel. 5220M has a brass faceplate

Plating Kept in stock


Plating with delivery time

Zinc-plated (not 5220M)


Backset depth 44 mm, lockcase depth 75 mm.
Dimensions of the faceplate, see variants.
Follower bushing 9 mm.


5220 with a faceplate of steel.
5220M with a faceplate of brass.

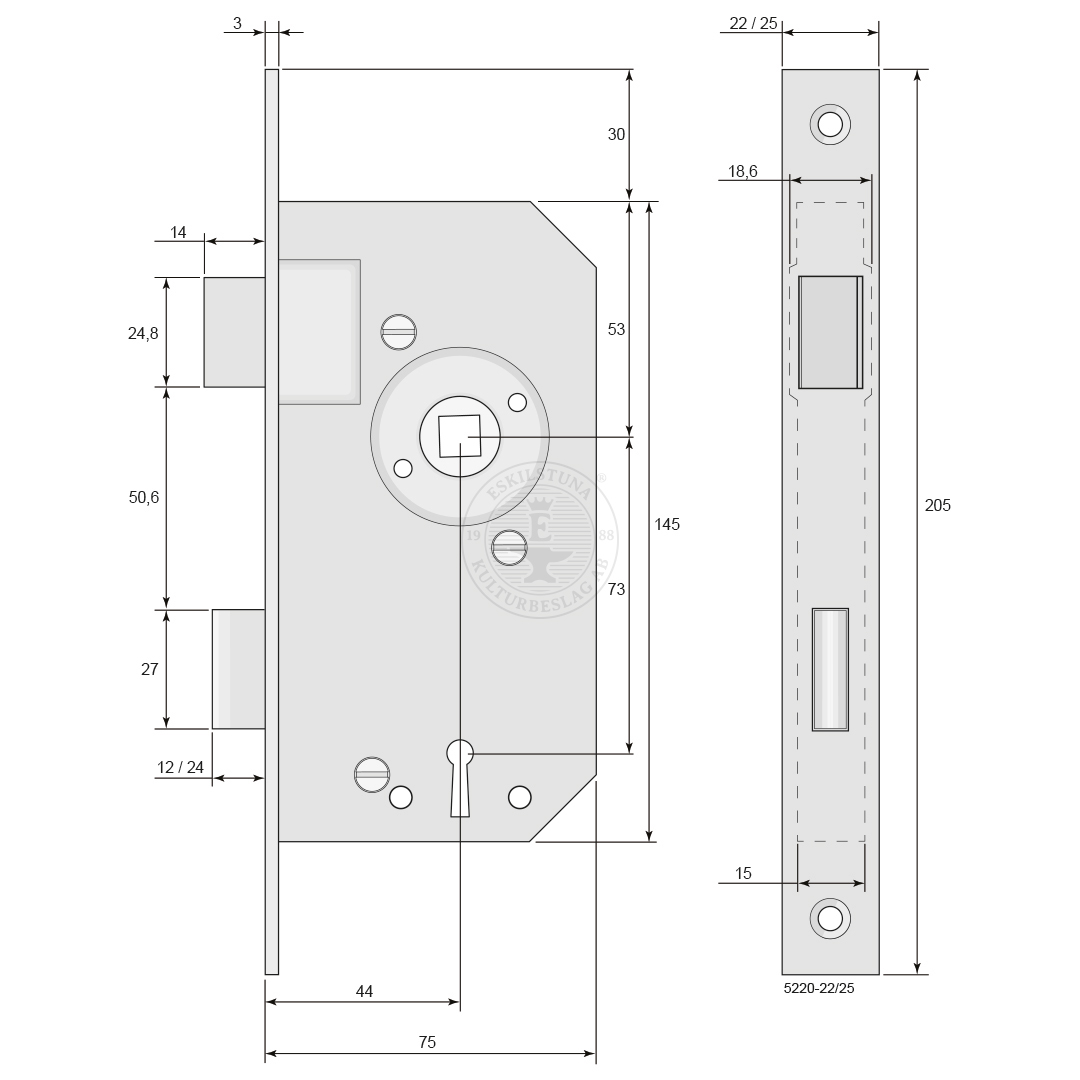

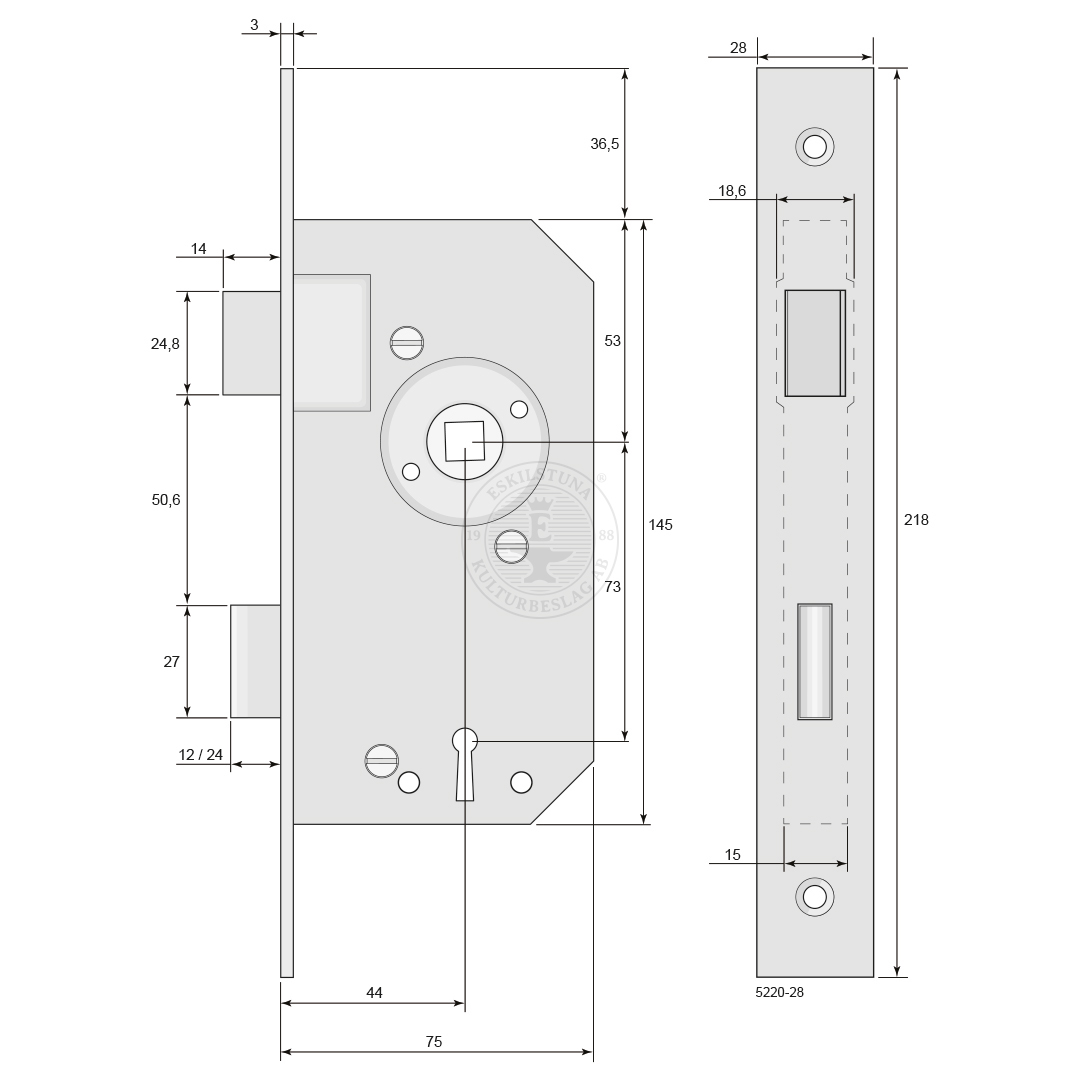

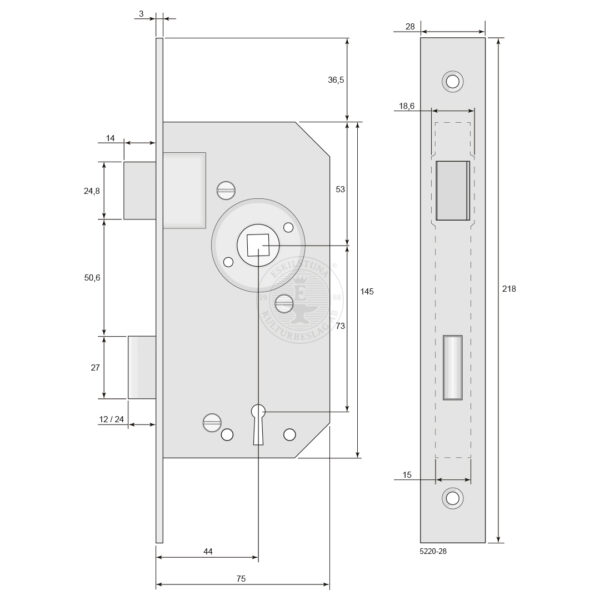

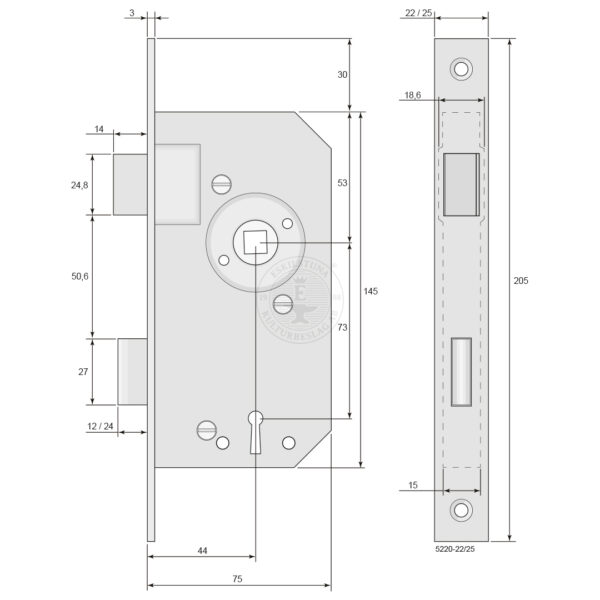

Faceplate 22×205, 25×205 or 28×218.
Right and Left (R shown).

Recommended wood screws

Countersunk head 8 x 1¼”


1 pc with screws


Intended for interior doors. Without lever tumbler.
The latchbolt is reversible for right or left hand doors. See instruction above.
Supplied with key 5243-2, and striking plate 5221 and bushing 5599 to fit both older and newer door handles.
5220M is delivered with striking plate 5221M.
This lock has a faceplate with straight cut ends ("straight corners").
Corresponding lock with a faceplate with round corners, see 5240.

Order info

When ordering, specify the article number, the width of the faceplate and right or left.
For example 5220M 28 V.
